Product Details:
Payment & Shipping Terms:
|
| Plug: | Local Country Plug | Eco-friendly: | Yes |
|---|---|---|---|
| Material: | Aluminum + Acrylic | Color: | Black / Silver , As You Need |
| Installation: | Ceiling Hanging Or Wall Mounted | Light Source: | Edge Lit |

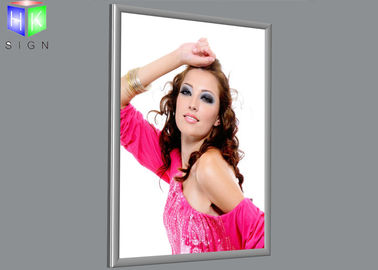

Slim Silver Snap Frame LED Light Box Display for Advertising 27" X 40"
Brief Introduction:
Model: 1521
Type: single-side
Frame type: curved frame

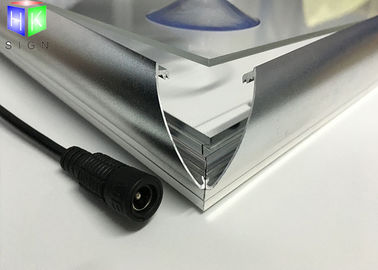

Change picture: snap open ,open from four sides and PS cover
Frame: optiaml aluminum
LGP: new optic quality acrylic sheet, with 3D laser engraving dot matrix
Cover: optiaml aluminum
Back board: KT board
Thickness: 15mm
Cover width: 21mm
Frame color : silver, black and can be customized
Light source:2835 high brightness pure white LED lights
Light power: adapter for LED light
AC Voltage: 110v-260v
DC Voltage: 12v
Brightness: it can be 5000LUX at the best allocation
Uniformity: side view,uniform lighting
Environment standard: no mercury, environmentally-friendly and the materials can be recycled
Power consumption: LED light is energy-saving 80% than the fluorescent lights
Installation: can be wall-mounted or placed on a countertop
Maintenance time: it's just 1-2minutes to change picture
| Model | 1521 |
| Thickness | 15mm |
| Cover width | 21mm |
| Size | what the size you need , the size can be customized |
| standard size | as below standard size reference |
| corner | right angle |
| Color | Black/Silver, or as you need |
| Frame | Open from four sides, easy change the poster |
| Material | optimal aluminum alloy frame |
| Newest optical import LGP | |
| AAA degree of acrylic sheet | |
| high quality reflective sheet | |
| Led source | word top class high brightness LED light source |
| Technology | world's leading 3D laser engraving technology |
| Power supply | with a power adaptor DC12V ,can use for AC100-240V, and have local plug |
| Installation | wall mounted |
Standard Sizes for reference ( Size can be customized)
| Model | Size |
Specification(mm) |
Thickness (mm) |
Light source |
Power (W) |
Power supplier | Note | ||
| Outer Size | Graphic size | View Size | |||||||
| 1521 | A4 | 240 x 327 | 210 x 297 | 180 x 267 | 15 | LED | 3.6W | DC12V | Snap frame |
| A3 | 327 x 450 | 297 x 420 | 267 x 390 | 15 | LED | 7.2W | DC12V | Snap frame | |
| A2 | 450 x 624 | 420 x 594 | 390 x 564 | 15 | LED | 14.4W | DC12V | Snap frame | |
| A1 | 624 x 871 | 594 x 841 | 564 x 811 | 15 | LED | 20W | DC12V | Snap frame | |
| A0 | 871 x 1219 | 841 x 1189 | 811 x 1159 | 15 | LED | 28.5W | DC12V | Snap frame | |
Application
