Product Details:
Payment & Shipping Terms:
|
| Color: | Black/ Silver/ White, As You Need | Application: | Estate Agent Window Displays |
|---|---|---|---|
| Name: | Slim Lightbox | Light Sources: | High Brightness Led Light Source |
| Life Span: | More Than 80000hrs | LGP: | New Optic Quality Acrylic |

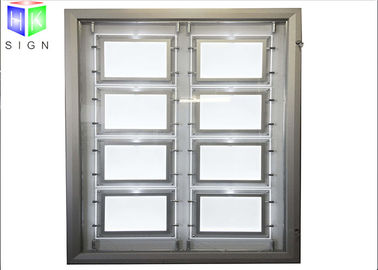

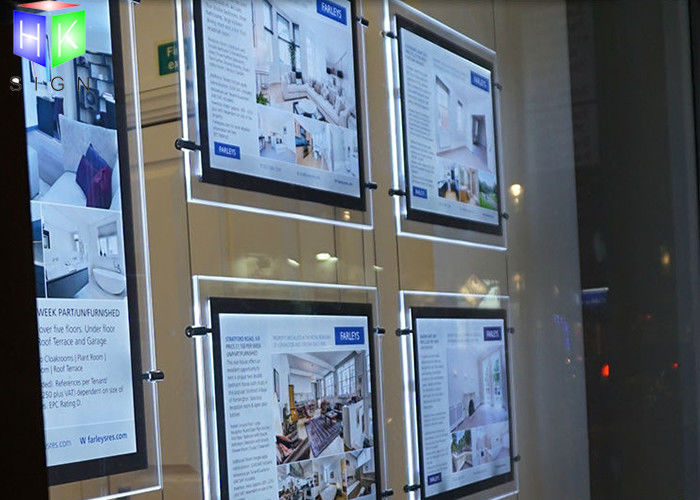

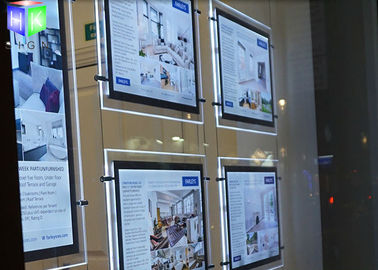

Indoor Crystal LED Estate Agent Window Displays Slim Lightbox Energy Saving
Brief introduction
1. crystal acrylic frame
2. single side or double side
3. super slim thickness 6mm only for single side
4. led light source with power saving
5. can be wall mounted or ceiling hanging
Light box advantage
1. Extremely thin: LGP(light guide panel) technology makes the light box very slim, thickness is only 8-30mm.
2. High brightness, very steady: highest level A acrylic panel and self-developed silk print ink makes the light box has super brightness which is 30% brighter than other light box. Uniform and soft light, not easy to get yellowing, makes the graphic looked very natural and real.
3. Power saving: we use imported LED SMD2835 strips as light source, it makes the light box has very low attenuation which is less than 10% in the first 8,000hrs. Long lifespan which reaches 100,000hrs. More than 75% power can be saved compare to traditional light box.
4. Easy to change picture, just take out the screw and change
5. Frame color: frame color can be customized according to customer’s request.
6. Power adapter: DC12V certificated power supplier, safe and reliable.
7. Certification: Passed CE certification, some of the products have obtained the patents.
8. Safe packing for export: each product packed individually with K+A paper box(polyethylene bag or bubble bag+4pcs foam protecting angel), several units pack into one master carton with cardboard which surrounds all sides, very reliable for long-distance transport. Wooden crate packing can be customized.
Specifications
| Model | 0650 |
| Thickness | 6mm |
| Cover width | 50mm(20mm crystal frame) |
| Size | what the size you need , the size can be customized |
| standard size | A0(1269mmX921mm)A1(921mmX674mm)A2(674mmX500mm) A3(500mmX377mm)A4(377mmX290mm) |
| Color | Black/Silver, or as you need |
| Frame | Open with screws, easy change the poster |
| Material | import acrylic material |
| Newest optical import LGP | |
| AAA degree of acrylic sheet | |
| high quality reflective sheet | |
| Led source | word top class high brightness LED light source |
| Technology | world's leading 3D laser engraving technology |
| Power supply | with a power adaptor DC12V ,can use for AC100-240V, and have local plug |
| Installation | wall mounted |
| Model | Frame size (mm) | Picture Size (mm) | Visible Size (mm) | Thickness | Weight (KG) |
| A0 | 1269*921 | 1189*841 | 1179*831 | Thickness 6mm Cover Width 30mm |
15 |
| A1 | 921*674 | 841*594 | 831*584 | 8 | |
| A2 | 674*500 | 594*420 | 584*410 | 5 | |
| A3 | 500*377 | 420*297 | 410*287 | 3.5 | |
| A4 | 377*290 | 297*210 | 287*200 | 2.5 |
