Product Details:
Payment & Shipping Terms:
|
| Corner: | Black/silver/as You Need | Name: | Restaurant Light Box |
|---|---|---|---|
| Light Sources: | High Brightness Led Light Source | Open Type: | Snap Open |
| LGP: | Import Acrylic Material | Color: | Black/silver/white As You Need |

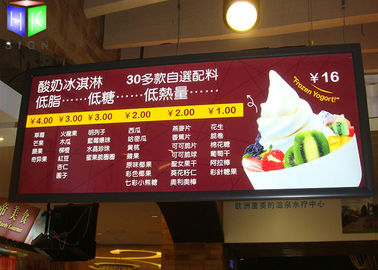

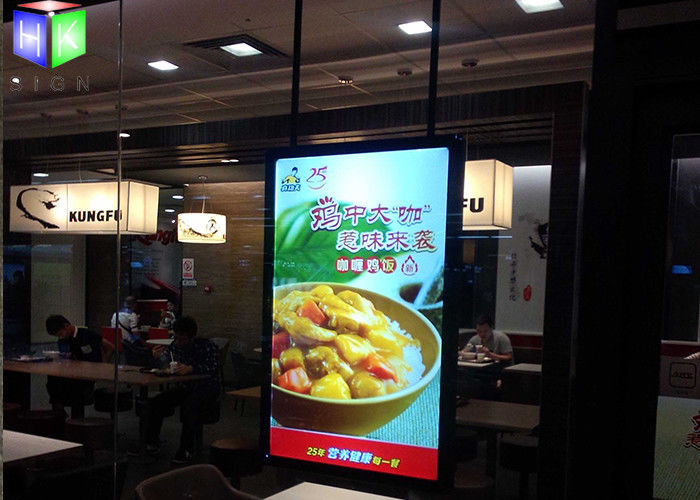

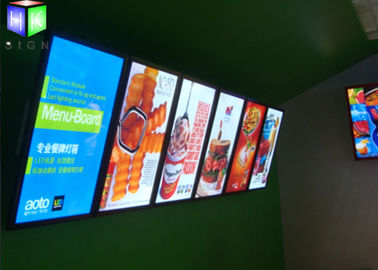

Ceilling Hanging Restaurant Light Box Signs 15 mm Thickness SGS Approved
1. LED Menu Board Brief:
The LED Menu Board be designed with a quality anodized aluminum frame, and "Snap Open" technology to make quick and frequent graphic changes. It's popularity is due, in part to the brightness of this edge-lit ligh box, but also because of it's modern and stylish appearance. This sign can be mounted in portrait or landscape orientations.
The LED Light Guide Technology creates sharper, clearer, and brighter imges. Even brightness across the light panel makes the graphics more attractive. In addition, it's long lifetime and energy-saving features help you become a "greener" businss.
2. LED Menu Board Specifications
| Product Name | Wall Mounted Restaurant Light LED Menu Board | ||
| Frame Material | Anodized Aluminum Frame | Frame Color | Black, Silver as you need |
| Light Guide Panel | import Mitsubishi Acrylic Panel | Light Source | SMD2835 |
| Input Power | AC 100-240V | Output Power | DC 12V |
| Life Span | 80k-100k hours | Low Power Consumption | 2w-10w |
| Thickness of Frame | 15mm | LED Postion | Built in two long sides of frame |
| Avaiable Size | A0, A1, A2, A3, A4; Cusomized size accept | ||
| Installation | Mounted on wall, or hanging | ||
| Parts | 1*LED light box, 1*power adapter, 2*wall screws | ||
| Certificates | CE, RoHS, FCC, UL | ||
3. standard size with packing weight
| Model | Frame size (mm) | Picture Size (mm) | Visible Size (mm) | Thickness | Weight (KG) |
| A0 | 1249*901 | 1189*841 | 1189*841 | Thickness 20mm Cover Width 30mm | 15 |
| A1 | 901*654 | 841*594 | 841*594 | 8 | |
| A2 | 654*480 | 594*420 | 594*420 | 6.8 | |
| A3 | 480*357 | 420*297 | 420*297 | 2.8 | |
| A4 | 357*270 | 297*210 | 297*210 | 2.1 |
4. Features
1. Material:Import acrylic.Transmittance 99.5% with SGS approved.
2. High quality laser engraving LGP available.
3. Max size:1.2*2.4 meters.
4. Special size are available.
5. LED light source
6. Easy Installation,we can supply clear installation video to you.
7. Widely use in super-market,chain-store,restaurant,hotel,station and other public places.
8. High brightness,low power consumption ,super slim and durable.
9. Frame silk-print color wideth 30/40/50mm available.
10. two years warranty. Paid service will be provided for the long term.
